Celestron CGX 8 Inch Rowe-Ackermann Schmidt Astrograph

Celestron CGX 8 Inch Rowe-Ackermann Schmidt Astrograph

• Flat-field free of optical aberrations like field curvature, coma, astigmatism and chromatic aberration across an entire APS-C sensor.
• Unlike the larger RASAs that work with DSLR and large CCD cameras, the 8” model was designed with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind. The telescope does not work with standard DSLR cameras.
• Ultra-Stable Focus System – precision linear ball bearing virtually eliminates image shift.
• Internal filter mount – seamlessly accommodates a Light Pollution Imaging Filter into the optical path.
• Performs over a wider spectral range than most telescopes, from 400-800 nm, so more of the light passing through the astrograph is in sharp focus.
• The CGX, with its 55 lb load capacity, is Celestron’s most innovative, state-of-the art, computerized equatorial mount to date, and provides a very sturdy and rigid platform for the fully-loaded RASA 8.
• The drive system utilizes low cog DC Servo motors with integrated optical encoders, belt and pulley motor connection, spring-loaded steel worm gears supported by precision sealed bearings, and brass worm wheels for smooth, accurate slewing and tracking performance with little backlash.
• Fully remote imaging capable, with optical limit switches, home sensors, through-mount cabling, and hard stops.
• Included Celestron PWI software allows direct computer control via USB 2.0 connection.
• Proven NexStar+ computerized telescope control technology supports functions to address imagers’ needs, such as All-Star Polar Alignment, Permanent Periodic Error Correction (PPEC), and adjustable tracking through meridian.

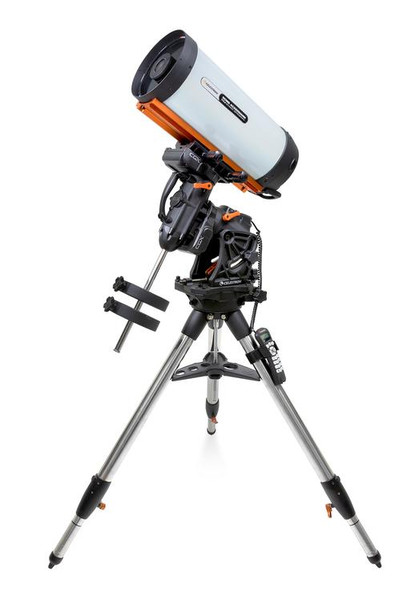

This kit combines the 8” Rowe-Ackermann Schmidt Astrograph (RASA) with the state-of-the-art CGX German equatorial mount. Simply add a camera and this package offers everything you need to take spectacular images of wide-field deep sky objects. Although about the same size as the CGEM II, the CGX is a big step up in performance and features, especially for imaging applications.

RASA Performance Made for Everyone

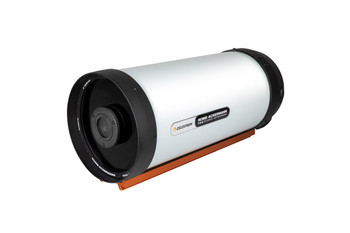

Capture spectacular wide-field deep sky images in seconds with Celestron’s portable astrograph, the 8” Rowe-Ackermann Schmidt Astrograph (RASA). This incredibly fast f/2.0 system is the perfect companion to today’s color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras. Thanks to its fast focal ratio and patented optical design, you can produce sharp, detailed images and, in many cases, skip the autoguider completely. Weighing in at just 17 pounds, it’s easy to transport your 8” RASA to the most remote dark sky locations.

The 8” RASA is an imaging telescope that delivers a flat-field without optical aberrations for razor sharp stars across a wide field-of-view. It can capture stunning deep-sky astronomical images without the challenges typically presented by longer focal length instruments at a fraction of the cost of those systems.

The latest addition to the RASA family, this 8” version is a much more portable and affordable version of the heralded RASA 11, which was introduced to much acclaim in 2014. With the 8” RASA joining the lineup, a wider range of astroimagers can enjoy the benefits of the RASA design. It has many of the same thoughtfully designed features as its “big brother” RASA 11, including the integrated air-cooling system, internal filter mount, and sturdy CGE dovetail mounting bar.

Purely designed for imaging, the 8” RASA cannot be used visually. The prime focus focal plane is located at the front of the optical system, so it cannot accommodate a traditional eyepiece.

Shorter Exposure Times and Virtual “Real-Time” Observing

Since it is an F/2.0 optical system, imagers can use shorter exposure times to capture detail in faint objects. When combined with sensitive cameras and the proper “live stacking” software, the 8” RASA can provide an almost real-time observing experience. View images on a computer instantly that are brighter and more detailed than can be seen in much bigger telescopes with the naked eye.

Ultra-Stable Focus System

With the launch of the 8” RASA, Celestron is unveiling a focuser design that mitigates lateral movement of the primary mirror when focusing, slewing, or tracking with the astrograph. Focusing is easier, more accurate, and more stable than ever. The key to the Ultra-Stable Focus System is a precision linear ball bearing, which is tested during assembly to ensure optimal results.

Built for Today’s Latest Cameras

Unlike the larger RASAs that work with DSLR and large CCD cameras, the 8” model was designed with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind. The telescope does not work with standard DSLR cameras. It is optimized for sensors with up to a 22mm diagonal, but performs well with sensors up to 32mm diagonal. The APS-C sized sensors used in many mirrorless cameras are a good choice. 42mm full frame sensors will also work, but performance will be poor at the edges of the sensor and field illumination will be reduced. Additionally, we do not recommend pairing RASA 8 with any camera body more than 4” in diameter. See the chart below to determine if your camera is compatible with RASA 8.
