Heliostar 100 H-Alpha Solar telescope/Wave 100i mount kit

(No reviews yet) Write a Review
SKU:
SKW-S11335
  • Heliostar 100mm Hα / WAVE 100i Kit
  • Heliostar 100mm Hα / WAVE 100i Kit- 2

Expected release date is 2026 Apr 8th

Your price: $11,100.00

Description

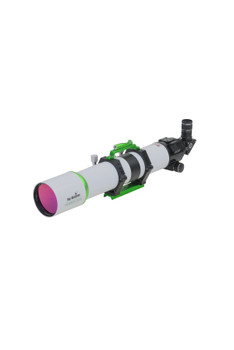

Heliostar 100mm Hα / WAVE 100i Kit


  • Double stack performance, single stack price
  • 100mm aperture, 760mm focal length, f/7.6
  • Official solar telescope of the Charlie Bates Solar Astronomy Project
  • Integrated Heliostar solar finder, tube rings, and carry handle
  • Integrated Trifid Tuner and Solis Etalon Technology
  • <0.5Å bandpass
  • H-alpha fully multicoated lens
  • Achromatic doublet design
  • 2.8-inch dual-speed Rack and Pinion focuser
  • 20mm, 1.25” diagonal format blocking filter
  • Weight: 13.2 lbs.
  • Includes: OTA, mounting rings, V-style dovetail, clip-on Sun shade, 22mm 70° 1.25" eyepiece,2" eyepiece adapter, hard-shell carrying case
  • Wave 100i GoTo strainwave head
  • Works seamlessly with ASI Air (USB-B cable included)
  • EQ and AZ modes
  • Weighs 9.5 pounds (4.3kg)
  • 22-pound (10kg) payload capacity without optional counterweight
  • 33-pound (15kg) payload capacity with optional counterweight
  • Dual D/V hybrid saddles Included secondary saddle
  • Latitude range from 0° to 90°
  • Red LED for latitude scale and bubble level, Wi-Fi and Bluetooth
  • RA power off braking function, RA and DEC home position functions
  • Requires 12V 2A power (not included)
  • Counterweight kit not included
  • 2-inch rolled steel tripod legs
  • EQ6 style heavy duty tripod
  • Designed for Sky-Watcher Wave mounts and Wave Pier Extensions
  • Matching black trim
  • Weighs 16.5 pound (7.48kg)
  • Also compatible with NEQ6, EQ6, EQ6-R, and AZ-EQ6 mounts
  • Requires the Wave Pier Adapter (S30916) to mate the Wave mount to the tripod
