Description

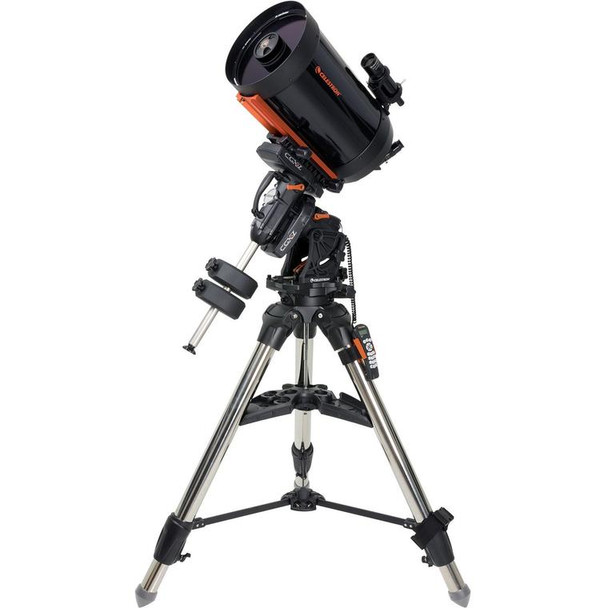

Celestron CGX-L 1100 SCT
The Mount
The CGX-L is Celestron's highest capacity German Equatorial mount rated at 75lbs capacity- large enough for permanent installation in an observatory, yet remaining portable for use in non permanent locations. 144mm diameter worm wheels provide smooth operation and can more accurately drive heavier loads. A 270mm long saddle provides support to larger optical tubes. Remote operation friendly features such as home and limit optical sensors are standard equipment. In addition to that, mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport.
The OTA
The Schmidt Cassegrain Telescope(SCT) is a hybrid optical design termed catadioptric. The modern SCT is a popular telescope design due to it's compact size vs aperture. StarBright XLT coated optics housed in a lightweight aluminum tube round out this popular design.
Mount Specs
| SKU: | CEL-91532 |
| Description: | CGX-L |
| Type: | German Equatorial |
| Saddle: | CGE(Losmandy(D)), CG5(Vixen) |
| Payload(lbs/kg): | 75/34 |
| Mount Weight(lbs/kg): | 53/24 |
| Tripod: | 2.75in Steel |
| Tripod Weight(lbs/kg): | 46/21 |
| GoTo: | Y |
| Control: | NexStar, PC |
| Object Catalogs: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| HC Object Database: | 40000+ |
| Polar Alignment: | P Scope, HC Routine. Other |
| Star Align Methods: | 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align |
| Ports: | 4 Aux ports (Hand Control can use any Aux port, 2 are located near the dovetail saddle for optional accesories) |
| Motors: | DC Servo |
| Encoders: | N |
| Drive: | Belt |
| Home Sensors: | Y |
| Tracking Modes: | EQ North & EQ South |
| Tracking Rates: | SID, SOL, LUN |
| Built In Guider: | N |
| GuidePort: | Y |
| Auto-Guiding Speed: | |
| PEC: | Y |
| Periodic Error(uncorrected): | |
| Pointing Accuracy(armin): | |
| Max Slew Speed: | 3Deg/s |
| Slew Speeds: | 7 slew speeds - max speed 3deg/second |
| Latitude Range(EQ, ALTAZ): | 3-65, NA |
| Cable Management: | |
| Power: | 12VDC, 3.5AMP |
| Counterweight(lb/kg): | 1x22/10 |
| WiFi: | Optional |
| GPS: | NA |
| Internal Clock: | Y |
OTA Specs
| SKU: | CEL-91036-XLT |
| OpticalDesign: | Schmidt-Cassegrain(SCT) |
| Glass Elements: | |
| Aperture(mm): | 279.4 |
| Aperture(in): | 11.0 |
| FocalLength(mm): | 2800 |
| FocalRatio: | 10.0 |
| DawesLimit(arc seconds): | 0.42 |
| RayleighLimit(arc seconds):: | 0.49 |
| LimMagnitude: | 14.9 |
| Central Obstruction(mm/%): | 95/34 |
| Spot Size(um) | |
| Back Focus(mm): | |
| Wavelength Range(nm): | |
| LightGrasp(>human eye): | 1593 |
| Fastar(Hyperstar Available): | Y |
| ImageCircle(mm): | |
| Focuser: | Internal single speed focuser |
| Dovetail Bar: | CGE/Losmandy |
| Vented: | N |
| MirrorLock: | N |
| Dewshield: | Optional |
| Finderscope: | 9X50 Straight Inverted Image |
| Case: | Optional |
| Coatings: | StarBright XLT |
| Weight(lbs/kg): | 17.5/12.4 |
| MaxMagnification: | 550 |
| MinMagnification: | |
| Magnification w/Popular Focal Length Eyepieces | Exit Pupli(mm)/Magnification(x) |
| 40mm Focal Length: | 4mm, 70x |
| 32mm Focal Length: | 3.2mm, 90x |
| 25mm Focal Length: | 2.5mm, 110x |
| 18mm Focal Length: | 1.8mm, 160x |
| 13mm Focal Length: | 1.3mm, 220x |
| 10mm Focal Length: | 1mm, 280x |
| 8mm Focal Length: | 0.8mm, 350x |
| 5mm Focal Length: | 0.5mm, 560x |
